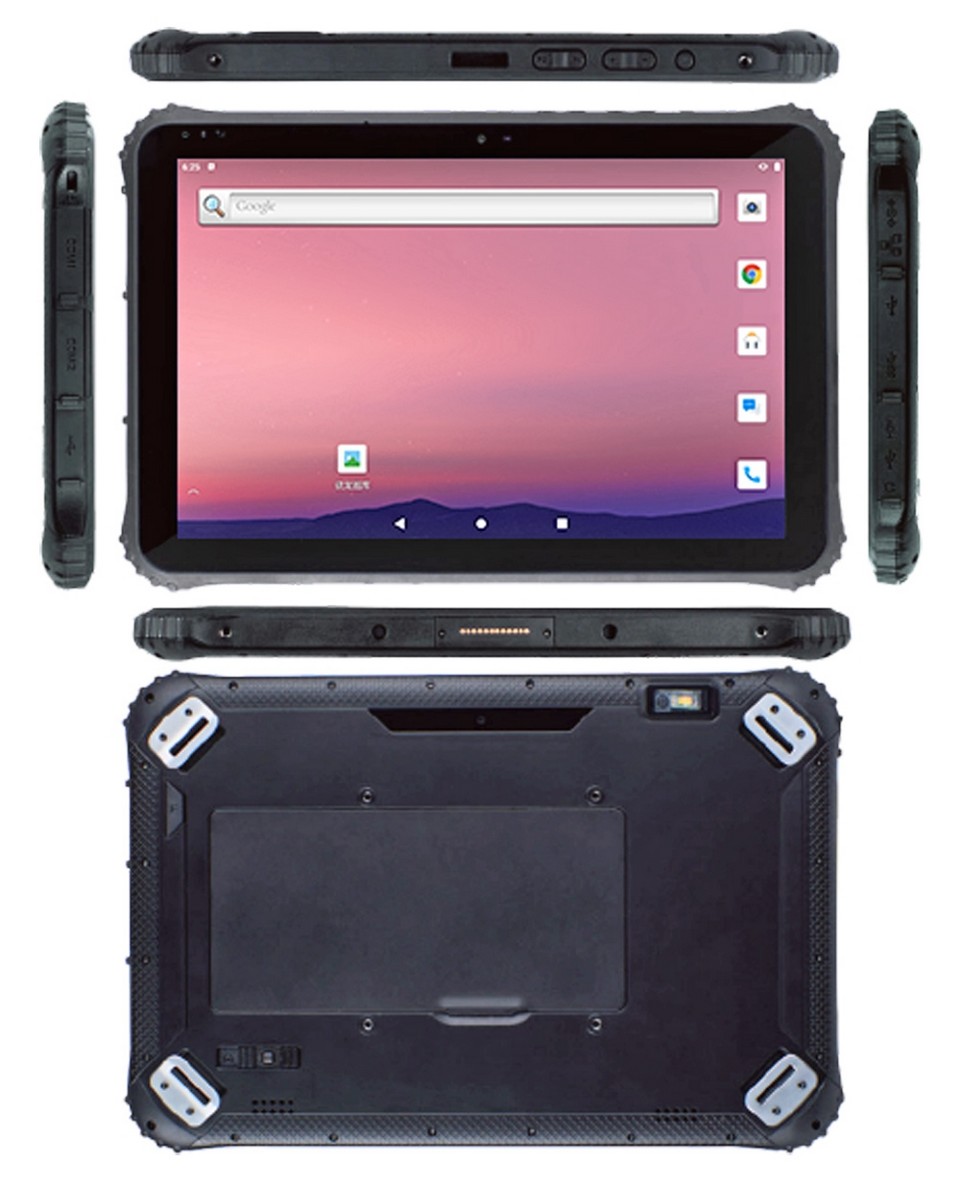

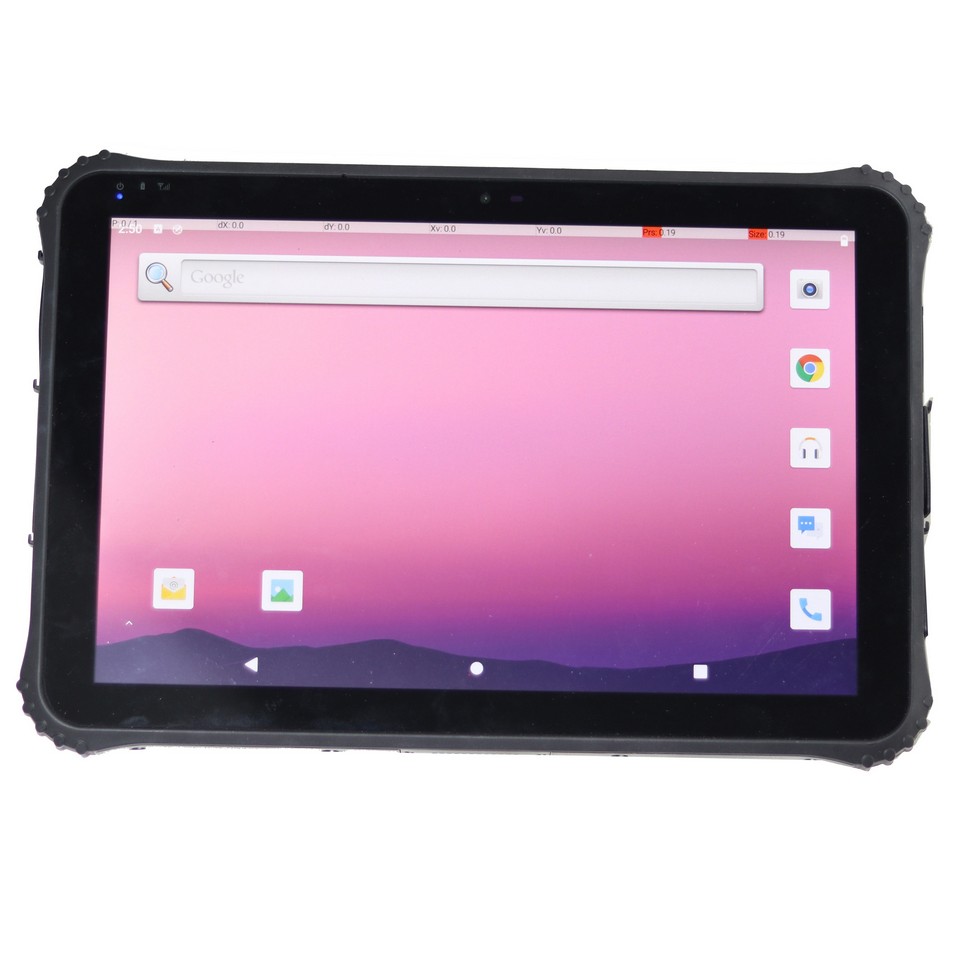

Torex PAD1225
Torex PAD1225 opens a new line of large, fast, functional tablets for the industry. It sets several records in the Torex line of industrial android tablets:
-
huge diagonal of 12.2 inches
-
Huge 12.6Ah battery
-
a lot of memory 8+128GB
-
2 COM ports
-
Support for 5G networks (N1/N28/N41/N78/N79)
Of the other advantages, we can mention:
-
work at -30 degrees Celsius
-
android 11
-
Support RS232 and RS485, LAN RJ45
-
12.2 inch FHD 1920*1200 dots screen
-

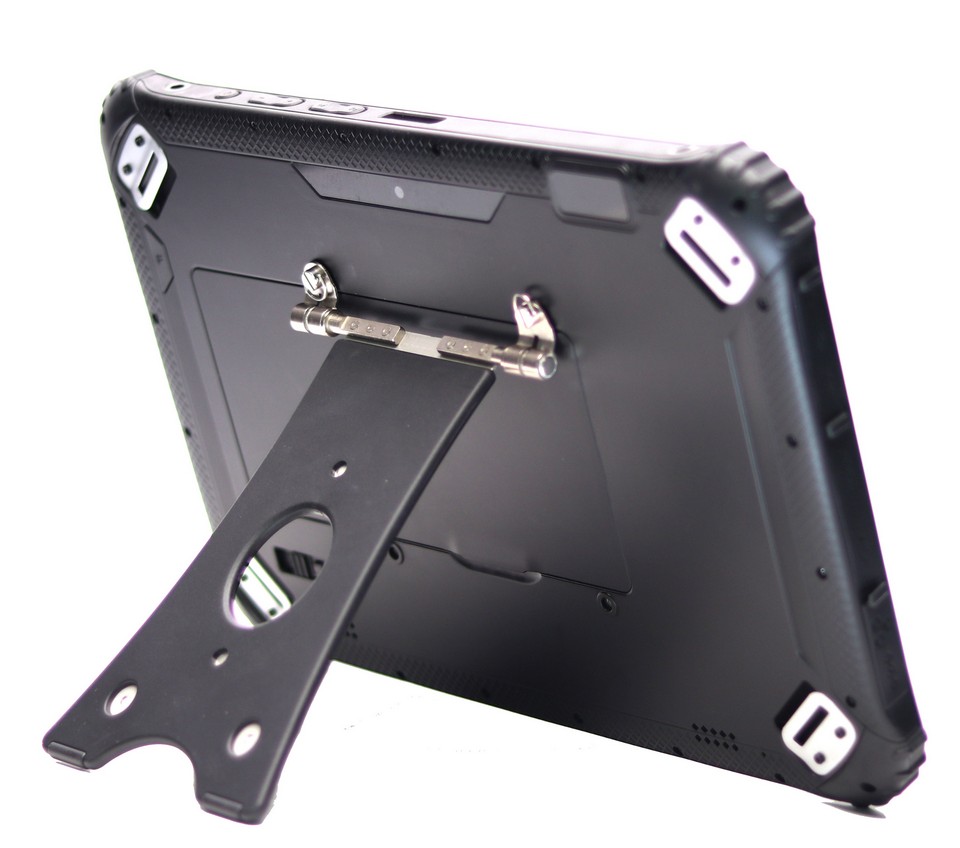

arm mount, dock connector
-
video output HDMI
-
4 USB ports in total
-
Support 2G/3G/4G/5G networks
-
Support Wi-Fi of both bands, BT 5.1, NFC
-
Memory expansion up to 2TB via microSDXC memory card.
A 2D scanner can be optionally installed on the Torex PAD1225.
The Torex PAD1225 can be used as an independent functional device, as well as a data collection and processing terminal, as part of a complex, being connected to various numerous devices. The tablet has IP65 dust resistance and impact resistance from drops up to 1m height.
The Torex PAD1225 is a serious assistant with serious functionality.
Specifications Torex PAD1225:
| type | tablet |
| OS | Android 11 |
| Dust&waterproof | IP65 |
| shockproof | MIL-810G |
| buttons | mechanical + sensor |
| SIM card slots | 1 microSim |
| weight, amms | 1500 |
| dimensions | 319.6*216*24.3 |
| LCD, TP type | IPS, multitouch |
| LCD size, inches | 12,2 |
| LCD resolution, dots | 1920*1200 |
| Pixel per inch (PPI) | 185 |
| Autorotate | yes |
| Glass type & thickness | Gorilla Glass 3, 1,1mm |
| LED notification | no |
| Main camera, megapixels | 13 |
| LED flashlight | yes |
| Max video record resolution | 1920x1200 |
| front camera, megapixels | 5 |
| 2G / 3G bands | 2G: B5/B8/B3/B2 3G: B1/B2/B5/B8 |
| 4G / LTE bands | 4G FDD LTE:B1/B3/B5/B8;4G TDD-LTE: B34/38/39/40/41, 5G NR:N1/N28/N41/N78/N79; |
| Input / output ports | Support IEEE 802.11 a/b/g/n 2.4G+5Ghz dual-band WIFI, Bluetooth 5.1, NFC |
| Navigation | GPS,GLONASS |
| Main Chipset | SM6350 |
| Frequency, MHz | 2000 |
| Cores quantity | 8 |
| RAM, Gigabites | 128 |
| ROM, Gigabites | 8 |
| SD card slot, up to Terabites | 2 |
| graphic chipset | Adreno 619 |
| battery type | Li-polymer |
| battery capacity, mah | 12600 |
| USB port type | USB type-C |
| Quick charge | yes, 5V 4A |
| Sensors | gyroscope |
| LED torch | yes |
| PTT DMR | no |
| PTT power | no |
| PTT band | no |
| Box contain | tablet, microUSB cable, AC adapter, back hand strip |

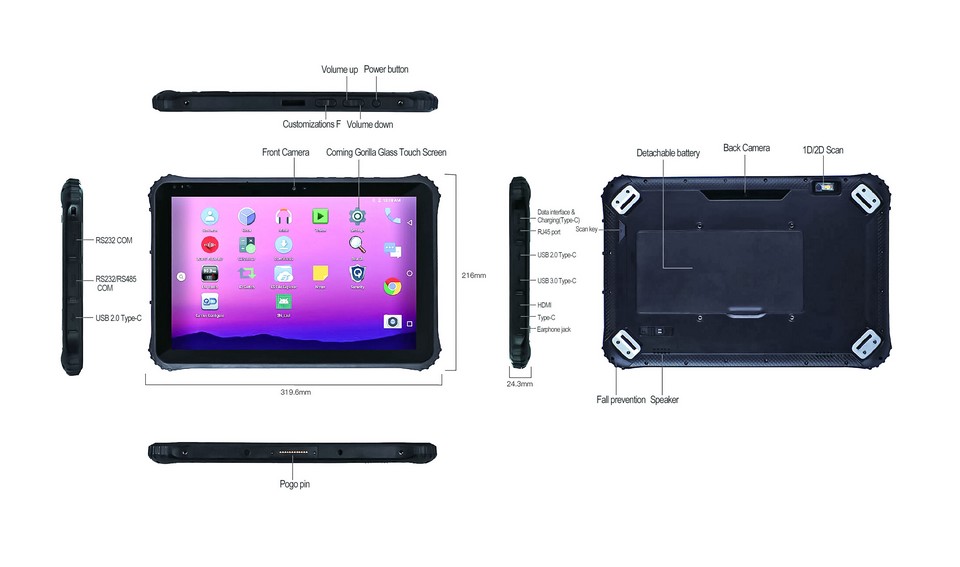

| additional info | I/O Ports: 1*DC port,2*USB Host,1*USB3.0(9-pin),1*Type-C USB,1*RJ45 Lan port,1*RS232 (DB9), 1*RS485(DB9),1*Micro HDM-I 1.4a, 1*earphone jack, 1*Sim Card Slot, pogo pin port |
| Options | Handheld belt, Shoulder Strap, Back Strap, Car Holder, 12600mah battery, Docking Station, Leather Keyboard. 2D Barcode (Honeywell) |
| brutto weight(kg) | 2,6 |
| box size(mm) | 420*240*60 |
