Torex FS2 version B

  • torex-fs2vB_02
  • torex-fs2vB_03
  • torex-fs2vB_04
  • torex-fs2vB_05
  • torex-fs2vB_06

Torex FS2 version.B- next device in branch of explosion-proof smartphones. It's still an explosion-proof smartphone with a large screen, battery, degree of shock protection. In compare with usual FS2 this version.B have no memory card slot and firmware without any Google services and requests for external IP addresses. Torex FS2 version.B is designed for large companies who need security not only at the hardware level, but also at the software level.

Design Torex FS2 version.B provides the highest degree of shock - water - dust protection IP67 (full tightness). The smartphone can withstand falls from a height of 3M or more (at -25 degrees only 1m), has a particularly durable screen with tempered glass Gorilla Glass3,1.2 mm thick (2-2.5 times thicker than conventional glasses in smartphones). The battery capacity is 4200mah. The processor is MTK6737

The degree of explosion safety proof:
- PO Ex ia I X/0Ex ia IIC T4 X
Explosion-safety proof of Torex FS2 version.B is provided with type of protection "intrinsically safe" according to IEC 60079-11:2011), and the implementation of its construction in accordance with the requirements of IEC 60079-0:2011.

Torex FS2 version.B suit the highest standards, and designed for use in the most demanding and dangerous industrial environments and it’s already being used on them.

Hardware Torex FS2 version.B. MTK6737 main chipset, 3GB of RAM, built-in 32GB ROM, without microSD memory card slot, large bright LCD screen, resolution full HD 1920*1080 pixels, 5.5 inches, Android 6.0 allows you to integrate any enterprise, military and civil decisions. Perfect 13MP camera with powerful led flash allows you to create excellent photos and detailed photo reports.

Torex FS2 version.B use a lithium manganese dioxide battery with a capacity of 4200mAh. This battery is fully certified and meets all the stringent requirements of the explosion safety.
Customized mechanical key can adjust the function of answering the incoming call as GSM communication and the channels push to talk (POC) (Zello and similar).

According to 8 years of experience in the producing of protected devices, the manufacturer of Torex FS2 version.B was able to achieve the best performance in its segment according to reception signals of GSM, Wi-Fi, GPS and GLONASS.

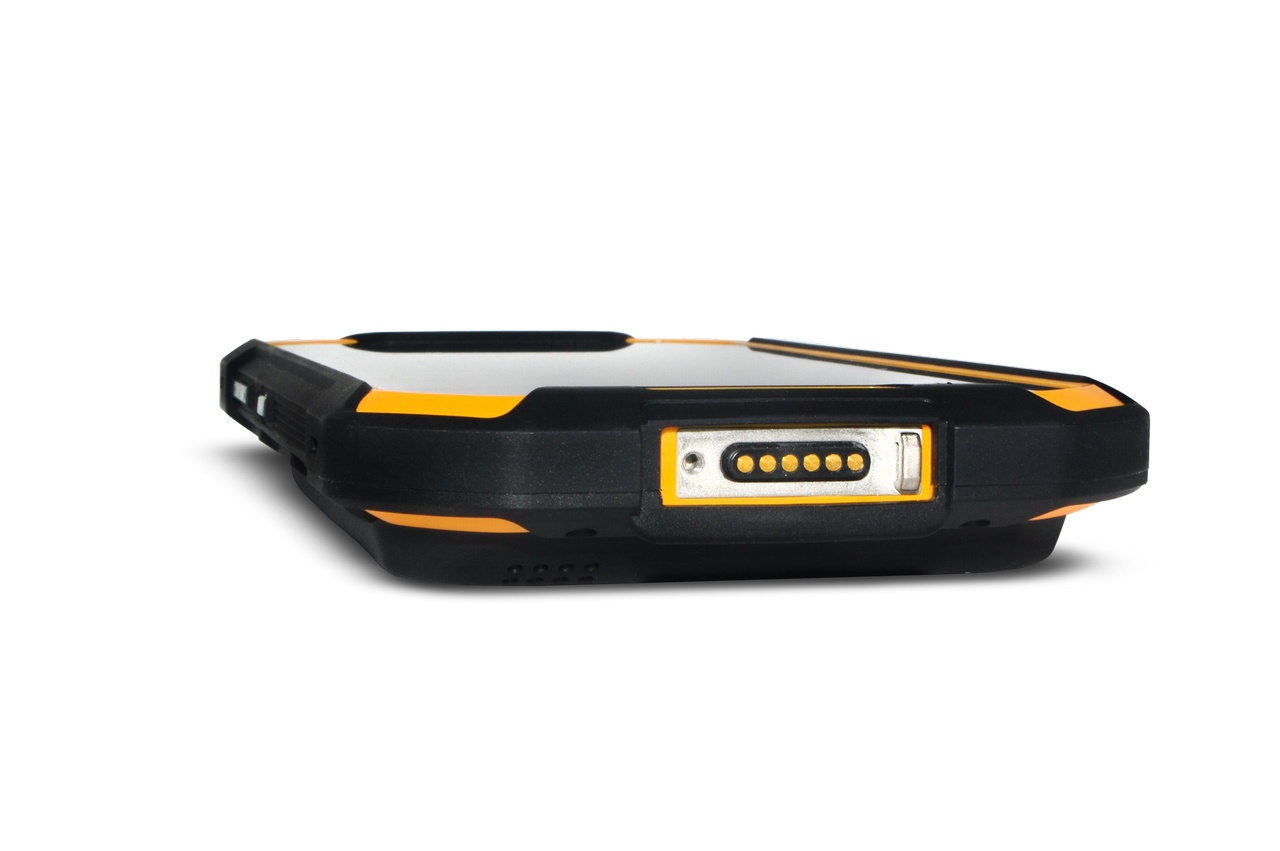

Torex FS2 version.B use a magnetic connector for charging and data transfer. So you will never, in any cases, won’t break this connector and mate on the USB cable. The magnetic charging connector is completely sealed and protected from short circuit even in salt water. When working with Torex FS2 version.B you can use another type of USB cable that has the fixing screw, which is also resistant to bending and breakage.

Torex FS2 version.B is the ideal solution for hazardous industries, a great helper in solving a wide range of corporate objectives in the most severe conditions of use: whether it is a mine filled with methane or terminal on the Alaska port in -30 degrees. In any extreme conditions Torex FS2 version.B will be your most reliable partner.

Specification TOREX FS2 version B:

Explosive safety classification  PO Ex ia I X/0Ex ia IIC T4 X
type smartphone
OS version Android 6.0
Case type bar
construction type bar
waterproof IP67
drop proof MIL-810G
buttons 3 physical + 3 sensor
SIM cards 2, nano SIM
weight 320gr
dimensions 88x168x20mm
Screen
screen type color, IPS
touch point capacitive
size 5,5 inches
image resolution 1920х1080pixels
pixel density, pixels per inch 400
auto rotate yes
glass type Gorilla Glass 3, 1,2mm thickness
Calls
LED notification yes
Multimedia
Camera 13MP, autofocus
LED flashlight yes
Video recording yes
Recording resolution 1920x1080pixels
Front camera yes, 5MP
audio MP3, AAC, WAV, FM-radio
Connections
GSM GSM 850/900/1800/1900, 3G, 4G LTE, LTE-A Cat. 4
LTE bands LTE-FDD: bands 1, 2, 3, 4, 5, 7, 8, 17, 20; LTE-TDD: bands 38, 39, 40, 41
Other Wi-Fi 802.11n, Bluetooth 4.0, USB magnetic port
Push-To-Talk yes
Navigation GPS/Glonass support
A-GPS support yes
Memory and main chipset
Main chip model MTK 6737
Frequency 1300 MHz
Core quantity 4
ROM 32Gb
RAM 3Gb
SD card support absent
graphic chip MALI-T720
Battery
type Li-MnO2
capacity  4200mah
Charge connector magnetic chargу connector
Quick charge yes, 5V, 2A
Others
Airplane mode yes
Sensors LED notification, proximity, light, gyroscope, acceleration
Torch yes
Built-in PTT  no
Power
Type
Additional info
Kit Fully removed all Google services. Torex FS2 version.B generally oriented for large corporatre customers. Kit: Smartphone, AC adapter, magnetic USB cable, user manual, screen protector
Created Date: 07-2019
