Torex WinPad15i5 is an industrial laptop. New in April 2024.

The WinPad15i5 is the third model of rugged laptops in the Torex line. The Torex WinPad15i5 is a shock-proof industrial laptop with a powerful, reliable case, modern hardware and a large set of interfaces and ports for connecting external devices. The screen of the Torex WinPad15i5 has a diagonal of 15.6 inches, FullHD resolution, brightness 700nits. The powerful protected case houses a high-performance Intel® 11th Generation Tiger Lake UP3 -28W Core™ i5-1135G7 processor. 16GB of RAM and 256GB of internal memory allow you to work with complex calculations and large amounts of data. It is possible to expand the built-in memory using microSDXC up to 2TB.

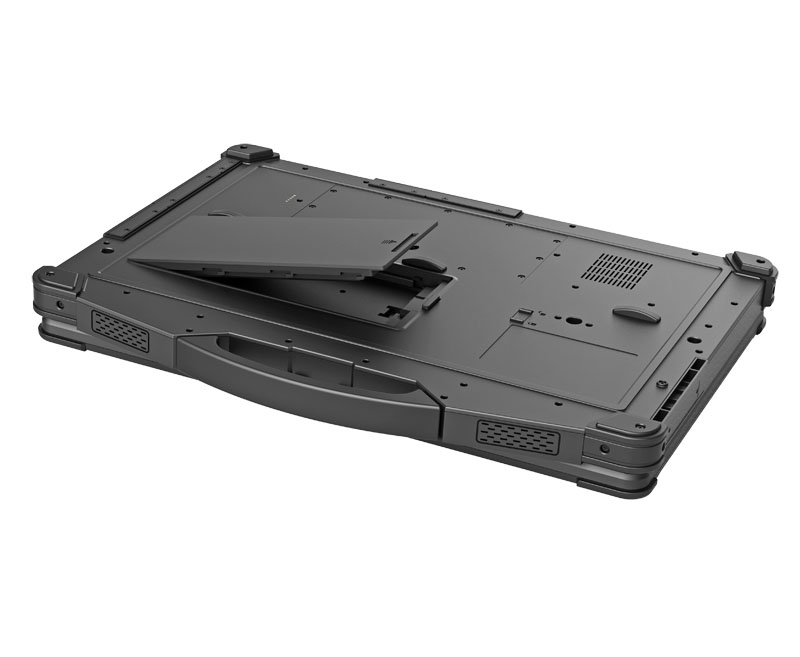

The WinPad15i5 is unique in that it is equipped with a built-in 13Wh battery and a second removable 47Wh battery with a hot-swap function.

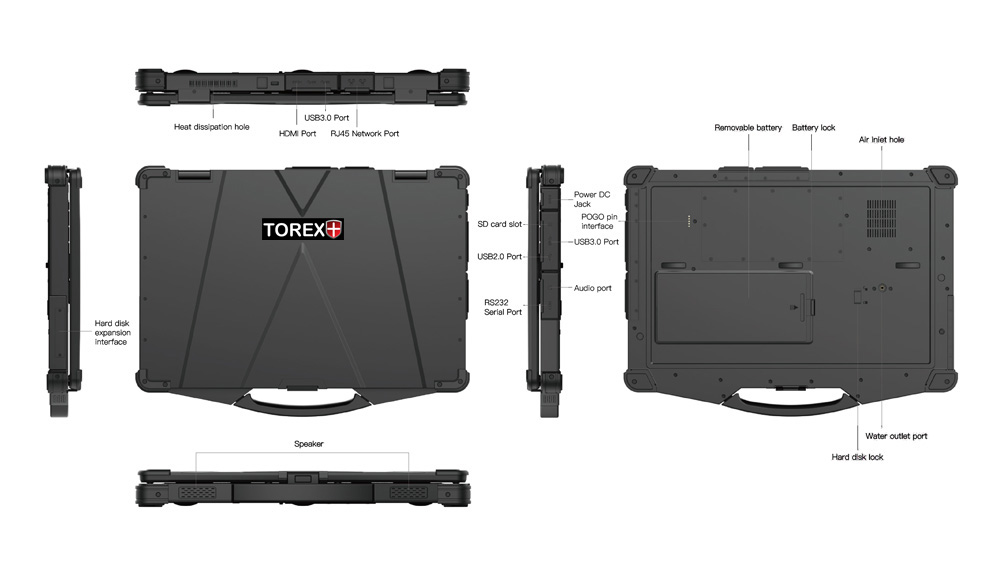

The list of connection interfaces includes:

  • 2 RJ45 10/100/1000M Ethernet ports,

  • DB9 port (RS232),

  • USB 2.0 port

  • 3pcs USB3.0 ports,

  • charging port DC port 19V 3.4A,

  • Memory card slot,

  • HDM-I 1.4A Port output,

  • 3.5mm audio jack output,

  • sim card slot,

  • Pogo-5pin connector

  • fingerprint scanner.

Wireless interfaces: Wi-Fi 6 (all frequency ranges), Bluetooth 5.1, GPS+Glonass navigation module (optional).

WinPad15i5 has IP65 water protection and shock protection against falls from heights up to 1m.

Additionally, the WinPad15i5 can be equipped with a touchscreen and a larger SSD drive.

WinPad15i5 is an excellent and reliable assistant in any production and work in an open area in any harsh conditions.

Specifications Industrial laptop Torex WinPad15i5:

type tablet
OS Windows 11
Dust&waterproof IP65
shockproof MIL-810G
buttons mechanical + sensor
SIM card slots 1 microSIM
weight, grams 3300
dimensions 397*271*37
LCD, TP type IPS, multitouch
LCD size, inches 15,6
LCD resolution, dots 1920x1080
Pixel per inch (PPI) 141
Autorotate Gorilla Glass 3, 1,1mm
Glass type & thickness no
LED notification 2
Main camera, megapixels no
LED flashlight yes
Max video record resolution 1920x1200
front camera, megapixels
2G / 3G bands WCDMA: B1/B8, GSM: B3/B8
4G / LTE bands FDD LTE Bands:B1/B3/B7/B8/B20/B28A
Input / output ports Wi-Fi 6 (2.4G/5G dual band wifi), BT5.1
Navigation optional: GPS+Glonass
Main Chipset Intel® 11th Generation Tiger Lake UP3 -28W Core™ i5-1135G7
Frequency, MHz  4200
Cores quantity 4
ROM, Gigabites 256
RAM, Gigabites 16
SD card slot, up to Terabites 2
graphic chipset Gen 12 Intel® Iris® Xe Graphics
battery type Li-polymer
battery capacity, mah 16100
USB port type DC connector
Quick charge yes, 19V 3A
Sensors no
LED torch yes
PTT power no
PTT band no
Box contain tablet, AC charger
additional info I/O Ports:2*RJ45 10/100/1000M Ethernet Port,1*DB9 (RS232 or RS485) Serial port, 3*USB3.0,1*USB2.0 Host,1*DC port(19V/3.42A), 1*TF Card Slot, 1*HDM-I 1.4a Port, 1*earphone jack, 1*Sim Card Slot,fingerprint sensor, LCD brightness 700nits
options Original Win11 pro,
16GBram+Touch Panel,
512GB SSD,
4G Module.
brutto weight(kg) 4,2
box size(mm) 495*335*80
