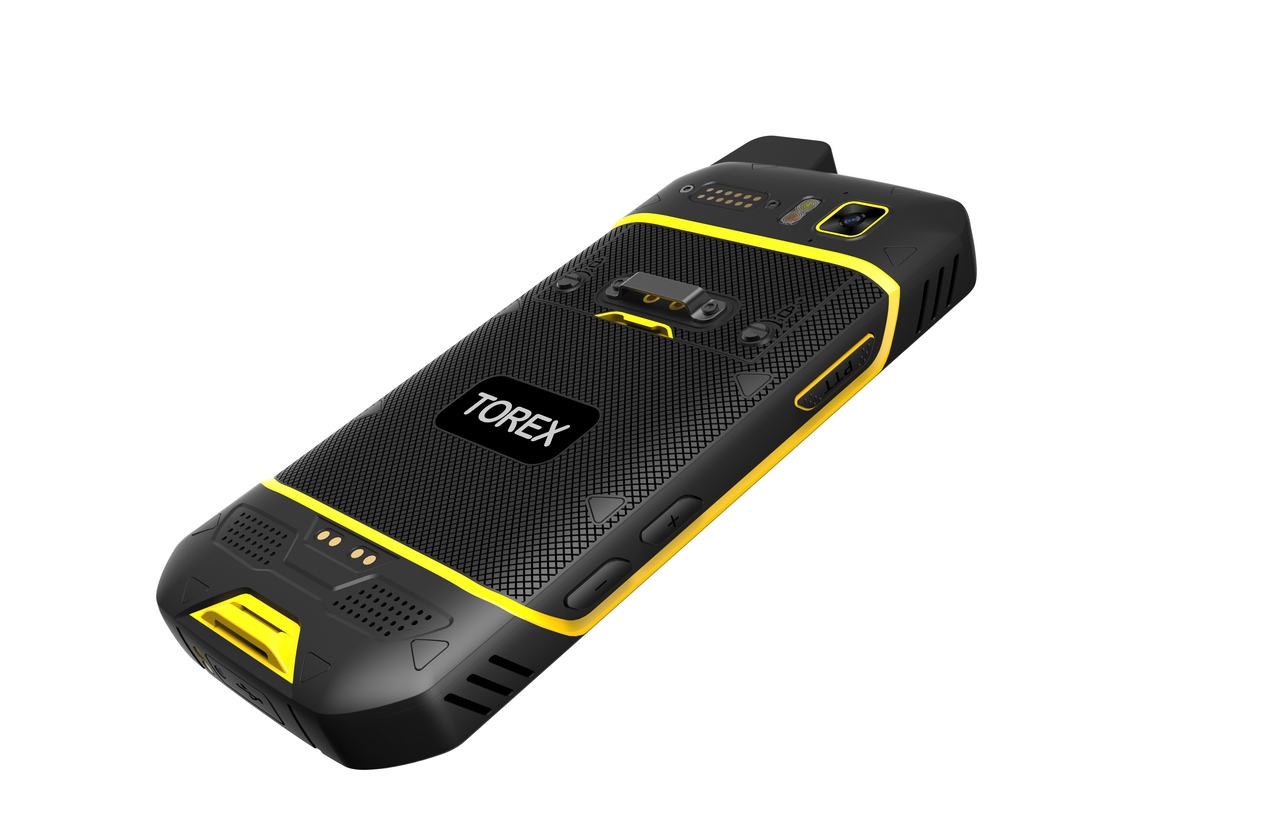

Torex FS3
Torex FS3 – the first model of explosion-safety smartphone from Torex family with ATEX certification. This unique device with stable operation at -45 degrees. The most productive explosion-proof smartphone of the second half of 2020 with ATEX certification.
Our team does not stop, and in 2020 we present new products almost every quarter. The Torex team has updated Torex FS3 smartphone for the harshest conditions of use in explosive environment with temperatures low to -60.
Now Torex FS3 has received the European ATEX explosion-proof certificate, in addition to certificates from China, Russia and South Africa. Also we had updated battery with greater frost resistance than before.
Our tests showed that the updated Torex FS3 works for more than 22 hours at -40 and did not turn off, which is an incredible record for intrinsically safe equipment.
We’ve equipped Torex FS3 with modern hardware: a powerful eight-core MTK processor, 6Gb of RAM, 128GB of built-in memory, and support for up to 512GB of memory cards. Dual-band high-speed Wi-Fi, NFC, fingerprint scanner, mechanical buttons to answer a call and hang up — this is very relevant, android 8, FULL HD screen and 5.5 inches of bright screen, 16MP camera.
Optionally, the smartphone can be equipped with a 2W 400-480mhz walkie-talkie: analog + DMR (requires replacing the back panel with a thicker one (+3mm), a high-resolution infrared camera, an RFID scanner and an optical 2D scanner.
The smartphone has a connector for connecting magnetic charging.
Explosion protection degree RO Ex ia I X/ 0Ex ia IIC T4 x.77
The operating temperature range is from -45 to +60 degrees Celsius.
Dust-water-shock protection at the maximum level of IP-68 and MIL-810G.
The 5100 mAh battery is fully certified for zone1 and zone0 and produces previously unprecedented stable performance at -40 degrees.
Intrinsically safe smartphone Torex FS3 now has certification in Russia TP TC 012/2011, Europe ATEX, as well as China and South Africa.
A great powerful smartphone for industrial use in the harshest conditions.

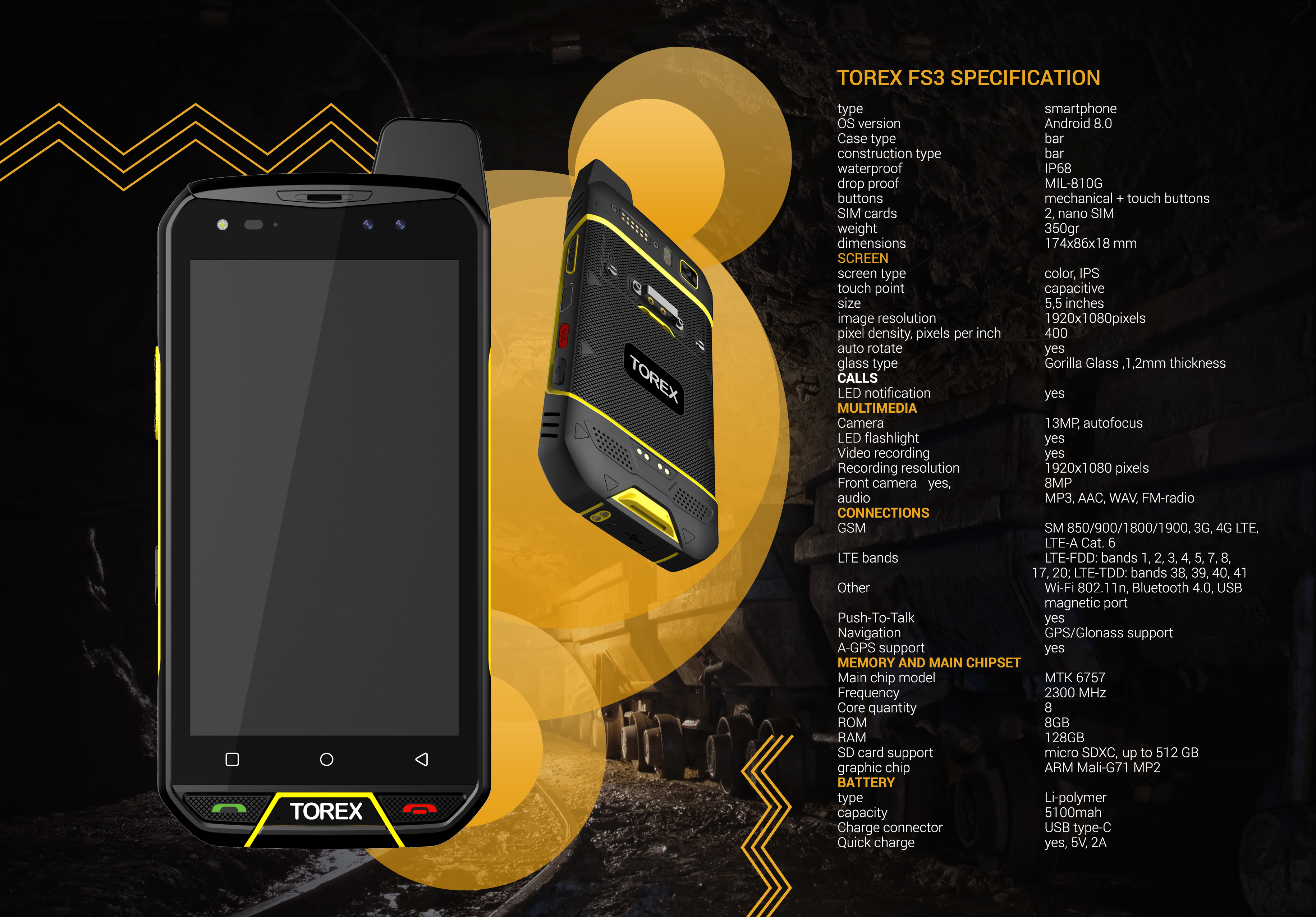

| Explosive safety classification | РО Ex ia I Х/ 0Ex ia IIC T4 X |
| operation temperature | from -45 to +60 |
| type | smartphone |
| OS version | Android 8.0 |
| Case type | bar |
| construction type | bar |
| waterproof | IP68 |
| drop proof | MIL-STD-810G |
| buttons | 8 physical + 3 sensor |
| SIM cards | 2, nano SIM + microSIM |
| weight | 350gr |
| dimensions | 174x86x18mm |
| Screen | |
| screen type | color, IPS |
| touch point | capacitive |
| size | 5,5 inches |
| image resolution | 1920х1080pixels |
| pixel density, pixels per inch | 400 |
| auto rotate | yes |
| glass type | Gorilla Glass, 1,2mm thickness |
| Calls | |
| LED notification | yes |
| Multimedia | |
| Camera | 16MP, autofocus |
| LED flashlight | yes |
| Video recording | yes |
| Recording resolution | 1920x1080pixels |
| Front camera | yes, 8MP |
| audio | MP3, AAC, WAV, FM-radio |
| Connections | |
| GSM | GSM 850/900/1800/1900, 3G, 4G LTE, LTE-A Cat. 6 |
| LTE bands | LTE-FDD:B1/2/3/4/5/7/8/12/17/19/20 LTE-TDD:B38/B39/B40/B41 |
| wireless interfaces | Wi-Fi 802.11ac 2,4/5,0 GHz, Bluetooth 4.0 |
| Push-To-Talk | yes |
| Navigation | GPS/Glonass/Beidou/Galileo support |
| A-GPS support | yes |
| Memory and main chipset | |
| Main chip model | MTK 6757 |
| Frequency | 2300 MHz |
| Core quantity | 8 |
| ROM | 128Gb |
| RAM | 6Gb |
| SD card support | microSDXC, up to 512 Gb |
| graphic chip | Mali-T880MP2 |
| Battery | |
| type | Li-polymer |
| capacity | 5100mah |
| Charge connector | USD type-C, magnetic cable, dock station |
| Quick charge | yes, 5V, 2A |
| Others | |
| Airplane mode | yes |
| Sensors | LED notification, proximity, light, gyroscope, acceleration, barometer |
| Torch | yes |
| PTT | yes, optional |
| PTT power | 2 Watts |
| PTT standarts | VHF(136-174MHz) or UHF(400-480MHz) |
| Additional info | |
| Kit | smartphone, AC adapter, type-C USB cable, user manual |
| work up to 23 hours at -40 degrees | |
| Infrared resolution: 160*120/80*60 Infrared frame rate：9fps Aperture：1.1 Pixel spacing:12um Lens:57°*44.3° Wavelength range:8-14um Thermal sensitivity:<50mk |
