Torex FS2 new

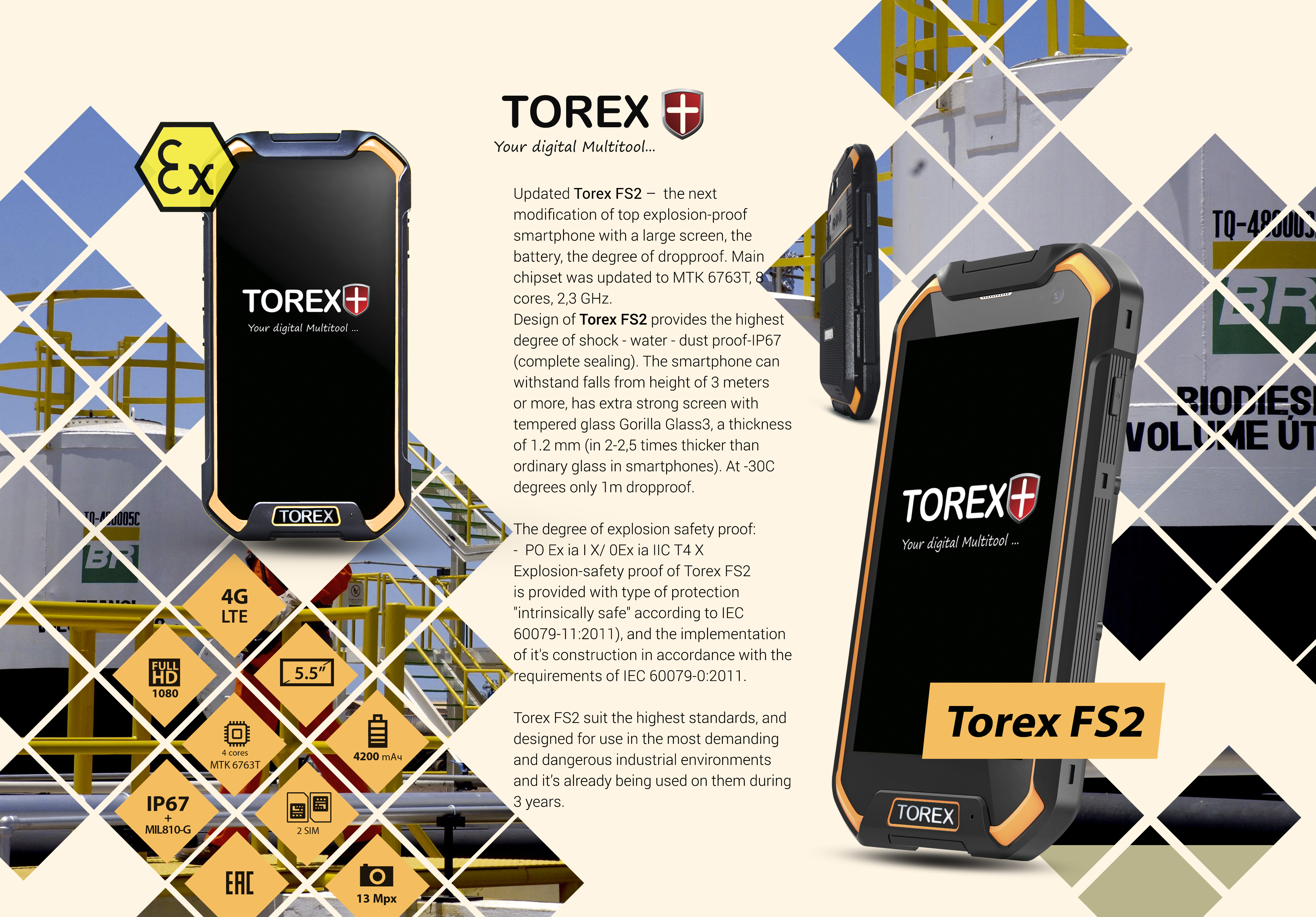

Updated Torex FS2 (android 8.1) – the next modification of top explosion-proof smartphone with a large screen, the battery, the degree of dropproof. Now explosive safety battery is 4200mah, main chipset was updated to MTK 6763T, 8 cores, 2,4GHz.
Design of Torex FS2 provides the highest degree of shock - water - dust proof-IP67 (complete sealing). The smartphone can withstand falls from height of 3 meters or more, has extra strong screen with tempered glass Gorilla Glass3, a thickness of 1.2 mm (in 2-2,5 times thicker than ordinary glass in smartphones). At -30С degrees only 1m dropproof.
The degree of explosion safety proof:
- PO Ex ia I X/0Ex ia IIC T4 X
Explosion-safety proof of Torex FS2 is provided with type of protection "intrinsically safe" according to IEC 60079-11:2011), and the implementation of its construction in accordance with the requirements of IEC 60079-0:2011.
Torex FS2 suit the highest standards, and designed for use in the most demanding and dangerous industrial environments and it’s already being used on them during 3 years.
Hardware Torex FS2, currently, is the most powerful and functional in this segment of the equipment. MTK6763T powerful processor, 4GB of RAM, built-in 64GB ROM and up to 512GB microSDXC memory, large bright LCD screen, resolution full HD 1920*1080 pixels, 5.5 inches, Android 8.1 allows you to integrate any enterprise, military and civil decisions like SAP, Soti, VMWare software. Best-in-class 21MP camera with powerful led flash allows you to create excellent photos and detailed photo reports.
Torex FS2 use a LiMnO2 lithium manganese dioxide battery with a capacity of 4200mAh. This battery is fully certified and meets all the stringent requirements of the explosion safety.
Customized mechanical key can adjust the function of answering the incoming call as GSM communication and the channels push to talk (POC) (Zello and similar).
According to 8 years of experience in the producing of protected devices, the manufacturer of Torex FS2 was able to achieve the best performance in its segment according to reception signals of GSM, Wi-Fi, GPS and GLONASS.
Torex FS2 use a USB type-C connector for charging and data transfer. This connector fully water proof and dust proof, even in sea water.
Torex FS2 is the ideal solution for hazardous industries, a great helper in solving a wide range of corporate objectives in the most severe conditions of use: whether it is a oil extractor or mine filled with methane or terminal on the Alaska port in -40 degrees. In any extreme conditions Torex FS2 will be your most reliable partner.

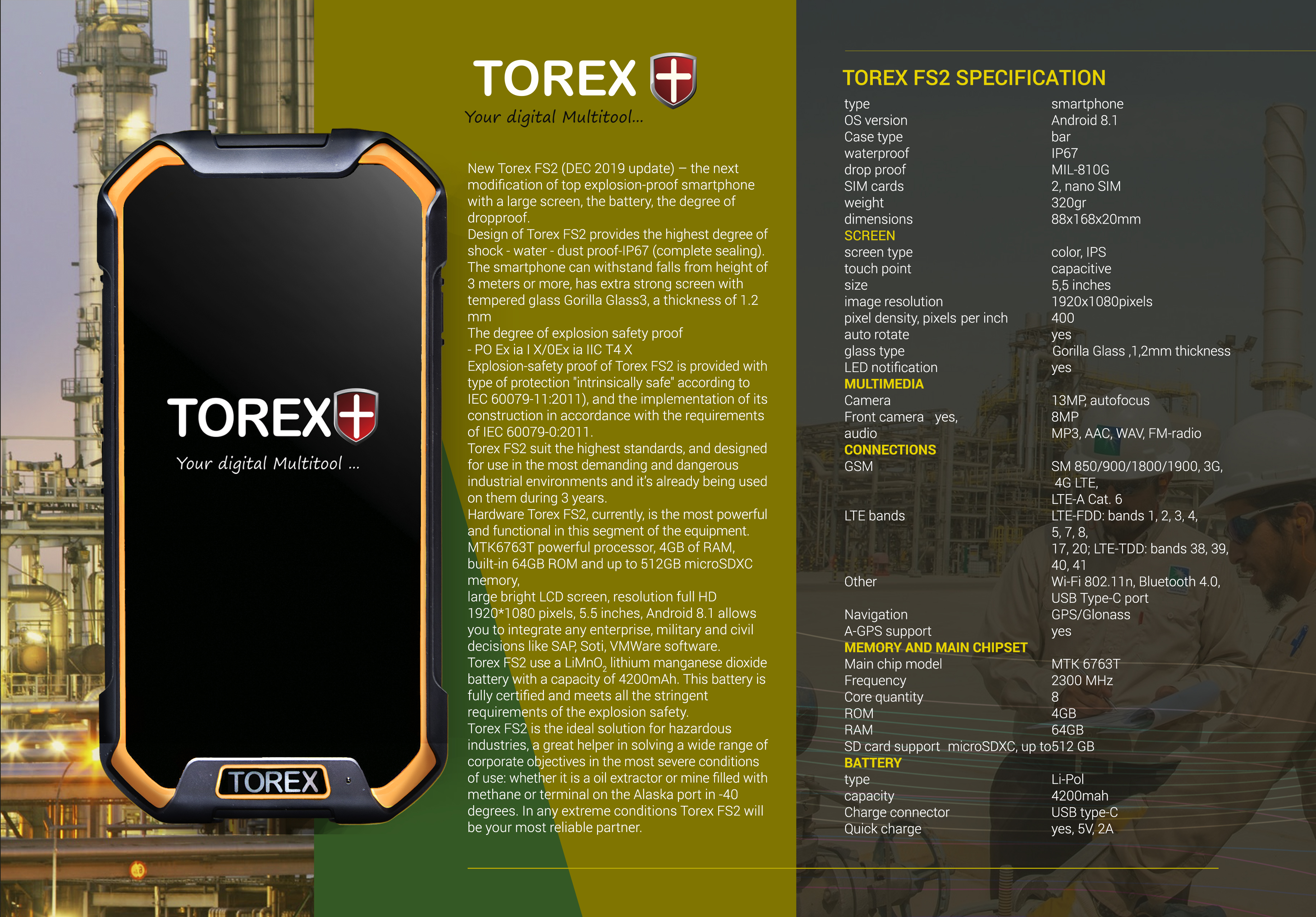

Specification:
| Explosive safety classification | PO Ex ia I X/0Ex ia IIC T4 X |
| type | smartphone |
| OS version | Android 8.1 |
| Case type | bar |
| construction type | bar |
| waterproof | IP67 |
| drop proof | MIL-810G |
| buttons | 3 physical + 3 sensor |
| SIM cards | 2, nano SIM |
| weight | 320gr |
| dimensions | 88x168x20mm |
| Screen | |
| screen type | color, IPS |
| touch point | capacitive |
| size | 5,5 inches |
| image resolution | 1920х1080pixels |
| pixel density, pixels per inch | 400 |
| auto rotate | yes |
| glass type | Gorilla Glass, 1,2mm thickness |
| Calls | |
| LED notification | yes |
| Multimedia | |
| Camera | 13MP, autofocus |
| LED flashlight | yes |
| Video recording | yes |
| Recording resolution | 1920x1080pixels |
| Front camera | yes, 5MP |
| audio | MP3, AAC, WAV, FM-radio |
| Connections | |
| GSM | GSM 850/900/1800/1900, 3G, 4G LTE, LTE-A Cat. 6 |
| LTE bands | GSM:B2,B3,B5,B8 WCDMA(EU):B1,B2,B5,B8 LTE-FDD(EU):B1,B2,B3,,B4,B5,B7,B8,B17,B20. LTE-TDD: B34/B38/B39/B40/B41(B)2550-2655MHz |
| Other | Wi-Fi 802.11ac, Bluetooth 4.0, USB magnetic port |
| Push-To-Talk | yes |
| Navigation | GPS/Glonass/Beidou support |
| A-GPS support | yes |
| Memory and main chipset | |
| Main chip model | MTK 6763T |
| Frequency | 2400 MHz |
| Core quantity | 8 |
| ROM | 64Gb |
| RAM | 4Gb |
| SD card support | microSDXC, up to 512 Gb |
| graphic chip | Mali G71-MP2 |
| Battery | |
| type | Li-MnO2 |
| capacity | 4200mah |
| Charge connector | magnetic chargу connector |
| Quick charge | yes, 5V, 2A |
| Others | |
| Airplane mode | yes |
| Sensors | LED notification, proximity, light, gyroscope, acceleration |
| Torch | yes |
| Additional info | |
| Kit | smartphone, AC adapter, type-C USB cable, user manual |
Download catalog: description and specification
